Paraglider Wing Layout Explained: Key Design Features and Performance Factors

Understanding the basic layout of a paraglider wing is crucial if you want to get the most out of your flying experience while maximizing safety and control. The shape, internal structure, and profile of each wing are precisely engineered to provide lift, stability, and maneuverability in the air.

From the upper and bottom surfaces to the arrangement of lines and the overall aerodynamic profile, every element works together to create the reliable glide that makes paragliding possible.

As you look closer at how these wings are constructed, you’ll find a blend of technical design and material science. The suspension lines, cell walls, and fabric all play specific roles in determining how your paraglider handles and responds, with innovations continually improving performance and durability.

Learning about these components can help you choose the right gear and maintain it properly for the best results in flight.

Key Takeaways

• The layout of a paraglider wing affects flight performance and safety.
• Understanding wing structure helps you make informed equipment choices.
• Technical advancements continuously shape design and usability.

Basic Components of Paraglider Wing Layout

A paraglider’s wing design directly affects its performance, safety, and durability. Each part is engineered to fulfill a specific function, from load distribution to flight control.

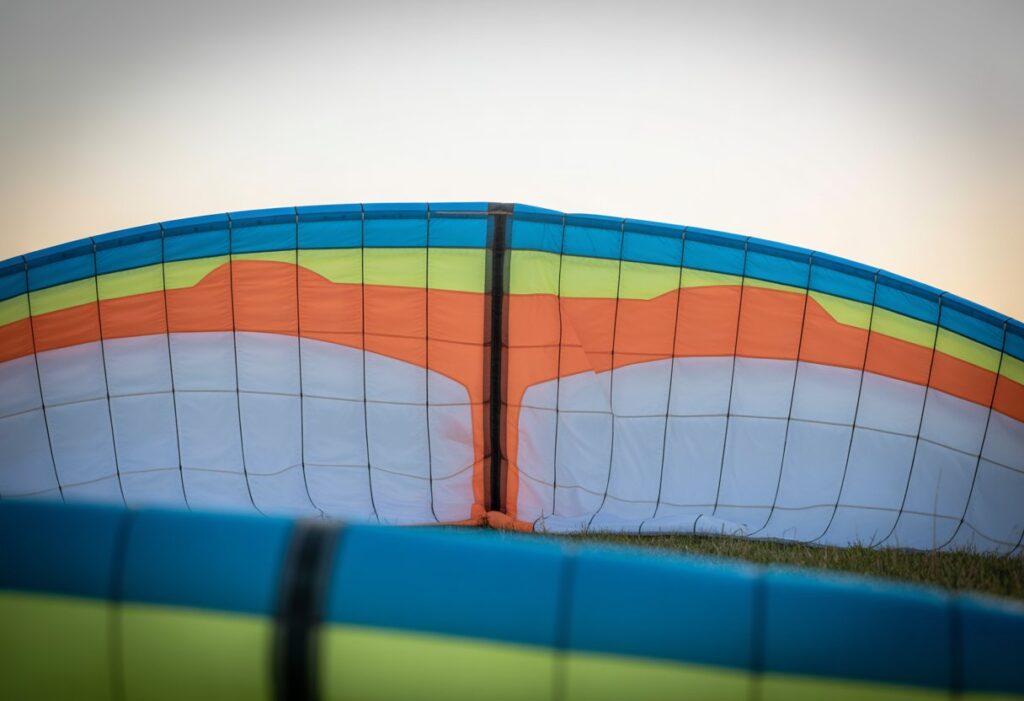

Wing Surface and Canopy

The wing, also called the canopy, forms the aerodynamic shape needed for flight. It is typically made from lightweight synthetic fabric such as ripstop nylon or polyester, which combines strength with resistance to stretching and UV damage.

This design creates an elliptical or swept-back outline visible from above. The canopy is segmented into multiple cells.

These cells are separated by vertical ribs and open at the leading edge, allowing air to inflate and pressurize the wing during flight. This configuration gives the canopy its distinctive shape and keeps it stable.

A properly maintained canopy generally has a lifespan of about 300 flying hours before the performance of its materials declines. The combination of fabric type, internal structure, and surface area plays a central role in overall flight characteristics.

More design details are explained at Paraglider Anatomy: Designing for the Sky.

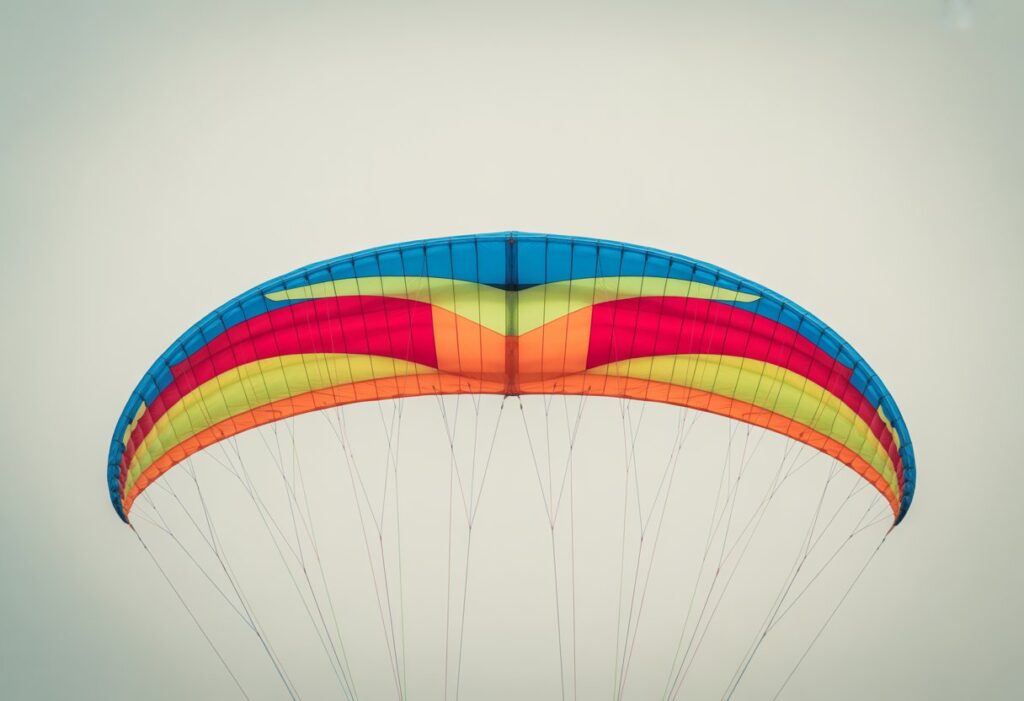

Lines and Risers

Lines connect the wing to your harness and are crucial for managing both load support and maneuverability. Most modern paragliders use lines made of high-strength synthetic materials such as Kevlar (aramid) or Dyneema, which offer excellent strength-to-weight ratios.

Paraglider lines are grouped in cascades. The uppermost lines attach to the wing’s ribs, and the lower lines converge into risers.

Risers are sturdy straps, often color-coded for easy identification, and they connect the lines to your harness using carabiners or quick links. You adjust your flight path using brake toggles attached to the trailing edge lines through the risers.

Risers may also feature a speed bar system, allowing you to change your angle of attack during flight. For more on their function, see Parts of a Paraglider.

Attachment Points

Attachment points are reinforced areas on the canopy where lines connect, distributing tension evenly across the structure. These reinforced points are critical for overall wing integrity, as they prevent tearing and ensure balanced load transfer during flight.

Each attachment point typically uses stitched webbing or similar reinforcement sewn into the synthetic fabric. This helps handle the stress from weight shifts and rapid movements.

Designs vary, but all prioritize durability over the flight lifespan of the paraglider. Proper inspection and maintenance of attachment points are vital for safety.

Damaged or loose connections can jeopardize flight stability, so routine checks are strongly advised. A technical overview of these elements is found in the Paraglider Structure, Materials and Maintenance article.

Wing Structure and Aerodynamics

A paraglider wing’s performance depends on the arrangement of its structural elements, aerodynamic profile, and proportions. Understanding these features will help you assess how your glider will handle, glide, and respond to various flight conditions.

Leading Edge and Trailing Edge

The leading edge is the frontmost part of your wing. It must maintain a smooth, rounded profile to manage airflow efficiently and prevent early separation that causes drag.

Modern paraglider wings often use reinforced plastic rods or mylar to help the leading edge keep its shape even under varying pressure. Openings along the leading edge allow air to inflate the internal cells, supporting the wing’s rigidity during flight.

This inflation is crucial for preserving airfoil shape and overall performance. The trailing edge, located at the rear, is typically thinner and less reinforced.

Its main role is to allow controlled airflow release while minimizing turbulence. Brake lines attach to the trailing edge, allowing you to alter the wing’s camber and steering directly.

Wing Tip Design

Wing tips influence both directional stability and induced drag. Rounded or elliptical wing tips are popular because they help reduce vortices that form at the tip and sap performance.

Paragliders often use a swept or curved design to enhance safety and minimize adverse yaw. Some advanced wings feature mini-ribs or tension bands near the tip, improving precision and maintaining a stable shape at higher speeds.

These structural tweaks can help reduce tip collapse in turbulent air. A well-shaped wing tip can also limit spanwise airflow—that is, air moving from the high-pressure area under the wing to the low-pressure top—which increases the efficiency of the wing and aids in better gliding performance.

Airfoils and Angle of Attack

The airfoil is the cross-sectional shape of each wing cell. It determines lift, drag, and stability characteristics.

Paraglider airfoils balance between thick profiles for stability and thin profiles for performance. Thicker airfoils improve passive safety and resist collapse, while thinner profiles provide faster speeds and more agile handling.

Angle of attack (AoA) is the angle between the chord line of your airfoil and the direction of airflow. Small changes in AoA have a strong influence on lift and stall behavior.

Control lines allow you to adjust AoA while flying, helping you control speed, descend, or climb. Too high an angle increases lift but also drag and could lead to a stall.

Too low and the wing can lose lift readily, making precise AoA adjustments essential during maneuvers and changing conditions.

Aspect Ratios

Aspect ratio describes the proportion of the wing span to its chord. It is often given as a flat aspect ratio, which uses the actual spread wing, or a projected aspect ratio, which accounts for the three-dimensional curve of the wing in flight.

High aspect ratio wings are long and slender, providing better glide and less induced drag but requiring precise handling. Lower aspect ratios offer more stability and are common in beginner and intermediate wings.

For performance-focused pilots, a higher projected aspect ratio can mean significant improvements in aerodynamic efficiency and climb rate. For new pilots, a moderate aspect ratio balances safety and maneuverability, reducing the risk of unwanted collapses or challenging recoveries.

Line Configuration and Materials

The layout and construction of your paraglider’s lines significantly affects performance, handling, and safety. Each category of line, the structures they are made from, and how they connect to risers are all crucial considerations in wing design.

Types of Lines and Their Functions

Paragliders use several categories of lines based on their position and function:

• A-lines: Closest to the wing’s leading edge. They primarily take the load during launch and flight stabilization.
• B-lines and C-lines: Run parallel toward the trailing edge, providing shape retention and in-flight stability.
• D-lines: Sometimes present on older or larger wings, farthest from the leading edge, providing extra structural support.
• Stabilo lines: Connect wing tips for added stability.

This arrangement allows the wing to distribute loads efficiently and react predictably to pilot input. The different lines play vital roles in transmitting tension and shaping the wing during various flight phases.

For more detail on specific line layout, see paraglider structure breakdown.

Brake Lines and Control Lines

Brake lines run from the trailing edge of the wing to your hands via the brake handles. These lines, usually distinct in color for quick identification, allow you to modify pitch, speed, and perform landing flares.

Control lines encompass both the brake lines and additional steering lines found on some wings (such as tip steering lines on advanced canopies). Accurate length and adjustment of the brake lines ensure reliable handling and prevent unintended input.

Brake and control systems directly impact your capability to safely manage the glider under changing conditions.

Line Materials and Strength

Modern paraglider lines use a range of specialized materials. Three common options are:

Material	Properties	Pros	Cons
Dyneema	Lightweight, low stretch	High abrasion resistance, strong	Prone to shrinkage over time
Aramid (e.g., Kevlar)	Very strong, low elongation	Good UV resistance, keeps trim well	More susceptible to bending/aging
PPSLS Liros	High-performance Dyneema	Used in high-load situations	Specialized, not always necessary

Unsheathed lines can reduce drag and weight but may be more vulnerable to abrasion. Sheathed lines, while heavier, add an extra layer of protection.

The right choice balances strength, elasticity, and resistance to environmental wear. Some manufacturers optimize with dark-dyed versions for UV resistance, such as Magix Pro Aramid A8000.

Lines and Risers Integration

Lines converge at the risers, which you hold and manage during flight. The connection point often uses a maillon, a small metal link or quick-release shackle rated for high loads.

Riser systems are typically divided into sections (A, B, C, and brake risers), each gathering the appropriate lines. The layout is designed to ensure easy identification, prevent entanglement, and enable efficient force transmission.

Careful threading and attachment of lines through maillons or soft links are essential for strength and reliability. Any slack, twists, or damaged thread can compromise your safety, so routine inspections are a key part of maintenance.

Find more about this joined structure at paraglider line details.

Performance Factors Influenced by Wing Layout

Wing layout directly affects lift generation, weight carrying capacity, speed, and glide performance. Understanding these relationships helps you make better decisions when choosing a paraglider for different flight conditions.

Lift and Glider Weight

Lift is generated as the wing moves through the air, shaped by the airfoil, aspect ratio, and overall planform. Wings with higher aspect ratios typically produce more efficient lift, but may demand more skill to fly.

The total glider weight, including pilot and equipment, must be supported by this lift for safe flight. Heavier paragliders with robust internal structures can tolerate greater loads but may respond less dynamically.

Material deformation and pressure distribution also play a role, as described in studies of wing structure and material geometry. This means careful consideration of wing layout is critical for achieving efficient and safe lift.

Weight Range and Certified Weight Range

Manufacturers specify both the weight range the wing is designed for and the certified weight range after testing. The certified weight range indicates the glider’s tested performance envelope and is important for safety and certification.

Flying outside the certified weight range can lead to unpredictable handling or degraded performance. The internal structure, load distribution, and total line length all contribute to how well a glider supports various weights.

Consider these ranges carefully, as they directly affect stability, handling, and passive safety.

Trim Speed and Top Speed

Trim speed is the base cruising speed of your glider with the brakes untouched. It’s influenced by wing curve, surface tension, and internal pressure.

The wing layout, especially the aspect ratio and chord length, controls airflow and thus impacts both trim and potential top speed.

Top speed is accessed by using the speed bar or accelerator system, stretching the layout’s aerodynamic limits. Designs with less trailing edge separation and reduced wing deformation usually permit higher speeds safely, as noted in aerodynamic performance studies.

Wing geometry sets practical boundaries for your speed range in flight.

Best Glide and Airspeed

Best glide describes how far your glider travels forward for every unit of height lost. This ratio is controlled by the wing’s airfoil profile, line layout, and internal rib spacing.

A well-designed layout reduces drag, delivering the highest possible glide at a specific airspeed. The best glide speed won’t always match top or trim speed but represents the sweet spot for efficient cross-country flight, as outlined in guides on airfoil theory for paragliding wings.

Knowing your best glide and corresponding airspeed lets you maximize flight distance and deal efficiently with varying air conditions.

Control Mechanisms and Safety Features

Understanding the key control systems of a paraglider wing is essential for flight performance and safety. Each mechanism contributes to how you manage speed, direction, and stability in a variety of flying conditions.

Speed System and Accelerator

The speed system, also known as the accelerator, enables you to adjust your flying speed without using the brake lines. When you activate the speed bar with your feet, it pulls down on the A risers, changing the angle of attack of the wing.

This increases your airspeed, which is especially useful in windy situations or when covering distance quickly. Most wings include a speed system as standard equipment, with lines and pulleys connecting your harness to the risers.

The setup is designed for quick engagement, letting you fine-tune your speed on the go. However, you should be aware that using the speed system reduces wing stability, especially in turbulent air.

A well-designed speed system is particularly beneficial for experienced pilots who need greater flexibility during cross-country flights. It is less commonly used by complete beginners due to the increased risk of collapses.

Brake and Spin Management

Brake lines are your principal controls for turning and adjusting the descent rate. By pulling down on the brake handles, you change the trailing edge of the wing, creating drag and altering lift distribution.

This lets you turn left or right, slow your descent, or flare for landing. Improper use of brake lines can result in a stall or spin, both of which are dangerous.

Beginners are advised to learn gentle and progressive brake inputs under the guidance of an instructor. Many wings designed for training feature brake systems with extra margin for error, making spins and stalls less likely.

Most modern harnesses have color-coded brake handles and stops built in. These features help minimize accidental over-control and allow you to quickly return to neutral, increasing your safety during flight.

Inflation and Trimmer

Proper inflation is fundamental to a safe takeoff. The wing must be evenly pressurized along the leading edge before leaving the ground.

Many gliders have reinforced noses and specific material choices to aid with inflation, especially in nil-wind conditions. Trimmers are adjustable straps on the risers that change the wing’s configuration, allowing you to alter speed and glide ratio during flight.

By releasing the trimmers, you lengthen the rear risers, flattening the profile and increasing speed at the expense of glide efficiency. Some trimmers can boost your speed by approximately 7 mph, but this should be done in stable air only.

Wings marketed as beginner-friendly often feature limited trimmer range or lockable settings to reduce user error. Testing and adjusting trimmers is a critical step before each flight, as incorrect settings can compromise both handling and safety.

For more about trimmers and speed adjustments, see this detailed explanation of paramotor wing controls.

Technical Specifications and Innovations

Modern paraglider wings are defined by their use of advanced synthetic materials and continual design improvements that enhance speed, handling, and safety. These developments directly impact aerodynamics, load management, and the pilot’s flight capabilities.

Synthetic Materials in Modern Wings

Most wings use high-tensile synthetic fabrics like ripstop nylon or polyester. These materials offer lightweight durability, resist tearing, and maintain structural integrity under stress.

Reinforced stitching and precision panel-cutting further improve the wing’s ability to withstand operational loads. Load distribution is achieved using strong Kevlar or Dyneema lines, which handle forces several times your body weight.

A typical 25 m² wing, for example, manages around 16 kg on each A riser and 10 kg on each B riser with a 75 kg pilot. The standard for paraglider and harness strength is about 10 G (ten times pilot weight) without material failure.

For more insight into construction, see this overview of paraglider materials and structure.

High-Speed and Advanced Designs

Current designs focus on aerodynamic efficiency and high-speed flight capability. Features like optimized leading edges, triple or double-skin configurations, and advanced profiling technology lead to smoother airflow over the wing.

You’ll often find technologies such as 3DL (3D Panel Shaping) that create precise airfoil shapes from 2D panels, achieving better stability at higher speeds. These techniques also improve performance when transitioning from trim speed to the top of the speed range.

Read about the importance of leading edge advancements and panel shaping in maximizing overall wing performance. Hybrid wing constructions also exist, combining singleskin and doubleskin sections for unique flight characteristics, further expanding the performance envelope for both recreational and experienced pilots.

Learn about these hybrid paraglider wings and their specific advantages in speed and handling.

Frequently Asked Questions

Designing a paraglider wing involves careful consideration of aerodynamic shape, structural components, and materials. Choices around wing size, certification, and technical specifications play a significant role in both performance and safety.

How do I design a paraglider wing for DIY projects?

When designing a paraglider wing for DIY purposes, you need to start with basic aerodynamic principles. Focus on creating an airfoil shape with enough cells to maintain structural rigidity and smooth airflow.

Study existing glider schematics and use modern paragliding design software if available. Material selection is important for weight and durability.

Precise measurements and consistent seam work help ensure even load distribution and consistent performance in flight.

What are the key parts and lines of a paraglider?

A standard paraglider consists of a canopy formed by cells made from a top and bottom surface connected by ribs. Key lines include A, B, C, and occasionally D lines, each playing a role in canopy stability and control.

Other essential parts are the risers, brake lines, and harness connection points. Each component must be strong enough to support your weight and spanned for balance and steering.

How does wing size affect paragliding performance?

Wing size directly influences how the paraglider feels and behaves in flight. A larger wing generates more lift, making it suitable for heavier pilots or lower wind conditions, but it may be less agile.

A smaller wing is more responsive and faster. However, it requires more skill to control and provides a higher wing loading.

Proper sizing is crucial for safety and performance suitability.

Can you differentiate between EN A and EN B classification in paragliding wings?

EN A wings are designed for beginners and entry-level pilots. They offer maximum stability, gentle handling, and a large safety margin.

EN B wings are targeted at pilots with more experience. These wings provide higher performance and responsiveness but require a better understanding of flying dynamics and recovery techniques.

What materials are used in constructing a paraglider wing?

Paraglider wings are usually made from lightweight synthetic fabrics such as ripstop nylon or polyester. The material must provide tear resistance, low weight, and minimal porosity.

Lines are constructed from materials like Kevlar (aramid), Dyneema, or polyester, optimized for strength and durability.

What is the importance of wing chord length in paraglider design?

The wing chord, or the distance from the leading edge to the trailing edge in the middle section, affects both lift and maneuverability.

A longer chord can increase lift, but may reduce aerodynamic efficiency and speed.

Shorter chords are often favored in high-performance wings for their lower drag and increased responsiveness.

This comes at the cost of increased demand on pilot skill and control.
